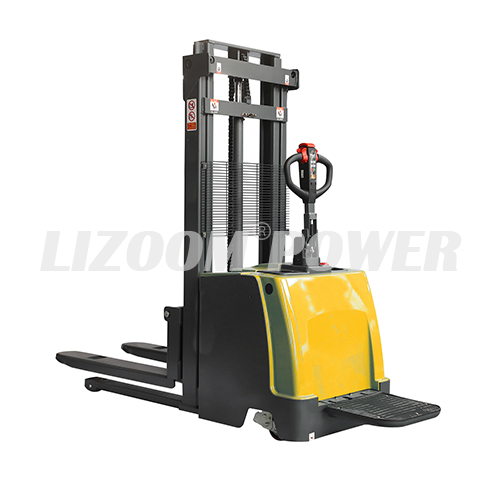

产品编号/Model Number |
LZD1016S |
LZD1616S |
LZD2016S |
||
|
额定载重/Load capacity |
|
kg |
1000 |
1600 |
2000 |
|
载荷中心距/Load center |
Q |
mm |
600 |
600 |
600 |
|
起升高度/Maximum lifting height |
H3 |
mm |
1600 |
1600 |
1600 |
|
整车长度/Overall length |
L |
mm |
2150 |
2150 |
2150 |
|
整车宽度/Overall width |
B |
mm |
850 |
850 |
850 |
|
门架静止高度/Mast lowered height |
H1 |
mm |
2055 |
2055 |
2055 |
|
门架最大高度/Max extend height |
H4 |
mm |
2110 |
2110 |
2210 |
|
轴距/Wheelbase |
Y |
mm |
1460 |
1460 |
1460 |
|
货叉长度/Fork length |
|
mm |
1150 |
1150 |
1150 |
|
货叉外宽/Fork width |
B1 |
mm |
560/680 |
560/680 |
560/680 |
|
货叉厚度/Fork thickness |
|
mm |
65 |
65 |
65 |
|
货叉降至最低高度/Fork min.height |
S |
mm |
90 |
90 |
90 |
|
产品编号Model number |
门架类型Mast type |
货叉最大高度Lifting height |
门架静止高度Mast lowered |
门架最大高度Mast extended |
自由提升高度Free lifting |
|
LZD10/16/20-20S |
一级标准 |
2000 |
1455 |
2410 |
／ |
|
LZD10/16/20-25S |
二级加强 |
2500 |
1705 |
2910 |
／ |
|
LZD10/16/20-30S |
二级加强 |
3000 |
1955 |
3410 |
／ |
|
LZD10/16/20-35S |
二级加强 |
3500 |
2205 |
3910 |
／ |
|
LZD10/16/20-40S |
二级加强 |
4000 |
2455 |
4410 |
／ |
|
LZD10/16/20-45S |
三级重型 |
4500 |
1955 |
4910 |
1570 |
|
LZD10/16/20-50S |
三级重型 |
5000 |
2178 |
5410 |
1740 |
