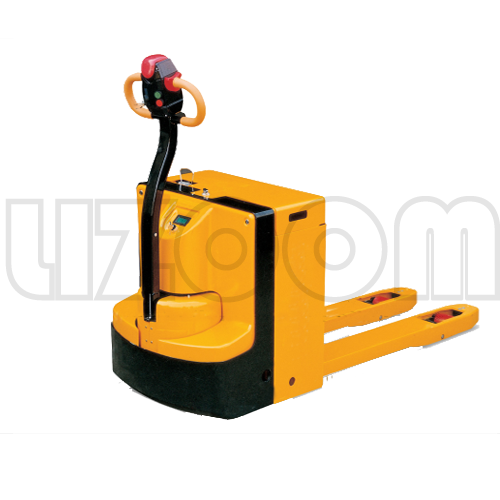

产品编号Model Number | LZB7022 | |
驱动方式Drive Style | 电动 | |
驾驶方式Driving Style | 步行 | |
额定载重Rated Capacity | Q(kg) | 2000 |
载荷中心Load Center | c(mm) | 600 |
轮距Wheel Base | Y(mm) | 1211/1261/1331 |
整机重量Overall Weight | kg | 620 |
轮子Wheel | 聚胺酯轮 | |
前轮Front Wheel | φ250×70 | |
后轮Rear Wheel | φ82×126 | |
平衡轮Balance Wheel | φ127×57 | |
货叉最大高度Max Fork Height | h3(mm) | 205 |
货叉最低高度Min Fork Height | h13(mm) | 85 |
整机长度Overall Length | l1(mm) | 1655/1705/1775 |
货叉外宽Outer Fork Width | l2(mm) | 520/550/650/685 |
整机宽度Overall Width | b1(mm) | 775 |
货叉尺寸Fork Size | S/e/l(mm) | 54×180×1100(1150/1220) |
通道宽度(托盘1000*1200) Channel width (Tray 1000*1200) | Ast(mm) | 2015/2065/2135 |
通道宽度(托盘800*1200) Channel width (Tray 800*1200) | Ast(mm) | 2115/2115/2135 |
转弯半径Turning Radius | Wa(mm) | 1626/1676/1746 |
最大行驶速度(满载)Maximum travel speed (full load) | Km/h | 5.5 |
最大行驶速度(空载)Maximum travel speed (Without load) | Km/h | 6 |
最大下降速度(满载/空载) Maximum falling speed (full load /without load) | m/s | 0.05/0.045 |
爬坡度(满载/空载) Grade (full load / without load) | % | 6/12 |
行车制动Service Brake | 电磁制动 | |
驱动电机Driving Motor | kW | 1.5 |
提升电机Lifting Motor | kW | 1.2 |
蓄电池Battery | V/Ah | 24/210 |
蓄电池重量Battery Weight | Kg | 170 |
蓄电池尺寸Battery Size | mm | 750×170×474 |
